Datasheet
Wireless CPE

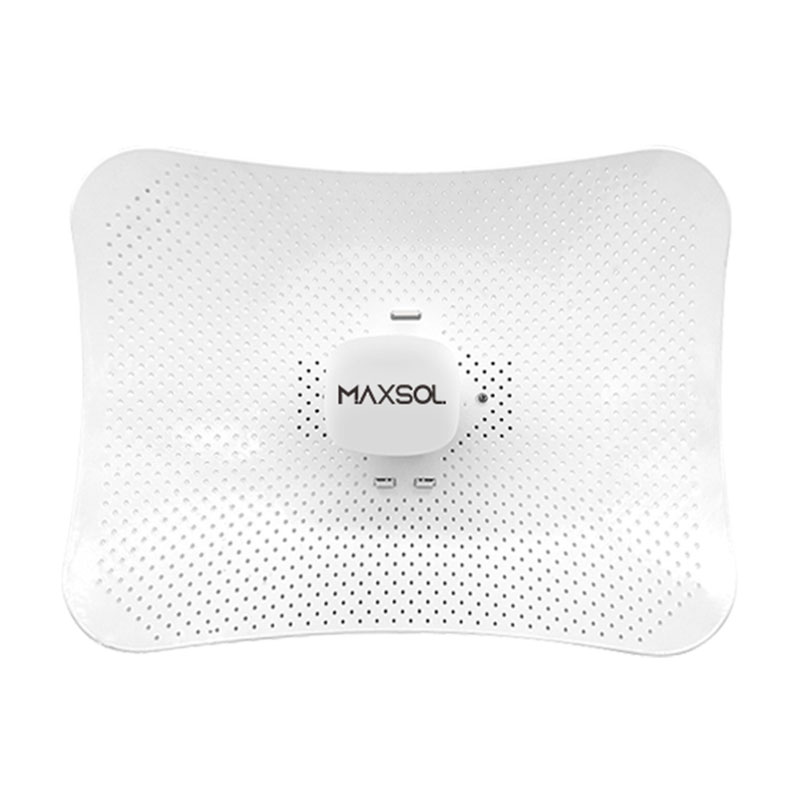

Long Range 10km 5.8GHz Wireless CPE Bridge
ModelCPE2910
CPE2910 5.8GHz wireless bridge with a 23dBi MIMO antenna, Gigabit Ethernet and 24V PoE input for line-of-sight links up to 10km.
Features
- 5.8G 900M 10KM Wireless CPE
- Built-in 2×2 dual-polarized directional MIMO 23dBi antenna
- 10/100/1000 Base-T, RJ45
- 5.150GHz–5.850GHz Extension Channel
- Transmitting power: ≤ 29dBm
- PoE 24V input
- Auto-connect for PTP / PTMP application
CPE2910
Specification
Specification
- Model
- CPE2910
- WLAN standard
- IEEE 802.11 a/n/ac or ipoll3
- Radio mode
- MIMO 2×2
- Radio frequency band
- 5 GHz: 4.9 – 6.1 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz)
- Tx power
- Up to 29dBm (country dependent)
- RX sensitivity
- -95 ~ -75dBm (country dependent)
- Channel size
- 5, 10, 20, 40, 80 MHz
- Modulation schemes
- 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) - Data rates
- 802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps - Error correction
- FEC, LDPC
- Duplexing scheme
- Time division duplex
- 40MHz
- Modulation, Mbps: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30
Tx power, dBm: 26, 26, 27, 28, 29, 29, 29, 29, 29, 29
RX Sensitivity, dBm: -70, -72, -76, -78, -80, -84, -87, -92, -94, -95 - 80MHz
- Modulation, Mbps: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65
Tx power, dBm: 25, 25, 26, 26, 27, 27, 28, 29, 29, 29
RX Sensitivity, dBm: -64, -66, -70, -72, -74, -78, -81, -85, -88, -90 - Type
- Integrated dual-polarized parabolic antenna
- Gain
- 23dBi
- Interface
- 10/100/1000 Base-T, RJ45
- Dimensions
- 348mm × 266mm × 254mm
- Weight
- 760g
- Mounting
- Pole mounting bracket included
- Power supply
- 24 VDC passive PoE (AC to 24 VDC adapter included)
- Power source
- 100 – 240V AC
- Humidity
- 5 ~ 90% (non-condensing)
- Full load power consumption
- 7W
- Operating temperature
- -40°C ~ +65°C
- System monitoring
- SNMP, Syslog, Web UI, WNMS
- Configuration
- WebUI, WNMS
- Frequency range
- 4.9 – 6.1 GHz
- Polarization
- Dual linear
- VSWR
- <1.5
- Azimuth beamwidth (H pol)
- 7°
- Azimuth beamwidth (V pol)
- 7°
- Elevation beamwidth
- 7°
