Model: CS8040 (80W45AH12.8V)

80W LiFePO4 Solar Power System for CCTV

High-performance 80W industrial solar system with 576Wh LiFePO4 battery and MPPT. Reliable power for remote CCTV. RS485 optional. Ideal for B2B integrators.

Key features

CCTV Solar Power Supply 80W45AH 576WH Solution
Solar panel: 80W monocrystalline silicon solar panel
Battery: 45AH12.8V LifePO4 Battery, total: 576WH
MPPT Solar Controller, 3*DC12V Output Port
Installation Bracket for Solar Panel and Battery
3*DC12V OUT
Other accessories: Battery Mount, Screws, DC Cable, etc
Optional Selection: RS485

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

Solar Panel Specification

Model: CS8040 (80W45AH12.8V)
STC peak power: 80W (single piece)
Module packaging: Tempered glass/EVA/cell/EVA backplane
Solar silicon crystal: Mono-crystalline silicon
Crystalline silicon characteristics: High efficiency of strong light conversion
Cell size and quantity: 210*52.5/36
Maximum output power: 80W
Maximum operating voltage: 21.1V
Maximum operating current: 4.10A
Open circuit voltage: 24.0V
Short circuit current: 4.59A
Tolerance: 3%
Maximum system open circuit voltage: 1000V

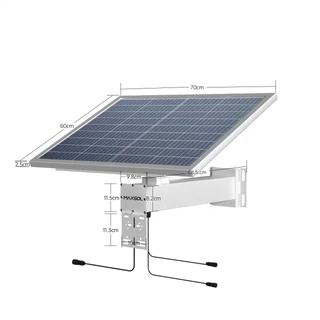

Solar Panel Dimensions: 700mm*600mm*25mm
Product weight: 3.415KG
Operating temperature range: -40~85℃
Relative humidity: <90%
Frame thickness: 0.88MM
Frame: Anodized aluminum alloy

Battery Specification

Solution

MPPT (input maximum power tracking algorithm), constant voltage output,

Battery capacity

12.8V/45AH (576WH)

Charging indication

LED status indicator

Input interface

Photovoltaic aviation plug

Output interface

DC5.5mm diameter standard male plug, 3-way output

Output voltage

12V±50mV

Output current

≤3A±50mA (total of three outputs)

Discharge utilization

≤90%

Operating temperature

Charging: 0~45℃

Discharging: -10~55℃ (accuracy: ±1℃)

Over-current protection

>4A (over-current protection for more than 3 seconds, green light flashes)

Overcharge and over-discharge protection

Over-discharge protection: <10V;

Over-charge protection: >14.6V (accuracy: ±0.1V)

Output short circuit protection

Green light flashes, green light stays on after short circuit is removed

RS-485 communication

Output power, voltage, current and other information according to customer needs

Battery heating function

When photovoltaic input is available, heating starts when temperature is below 0℃, and stops when temperature rises to 8℃

Heating power

Maximum 15W

Storage temperature

-20~35℃

Battery case Dimensions

685mm*98mm*82mm

Weight

≈2.5kg

Product capacity

20%-30%

Battery material

Lithium iron phosphate/LifePO4 battery

Battery Capacity

576Wh, 12.8V/45Ah

Power on power consumption

0.5±0.1W (normal temperature, no load when powered on)

Waterproof level

IP65

Battery life and charging

Power off battery life: 2 years (battery pack has no output after shutdown, power loss is self-discharge of battery cells, about 3%-5%/month)
Power on battery life: About 25 days (normal temperature, no load)
Load battery life: Actual operating time depends on the connected load, battery capacity and operating conditions. For reference, the system runtime can be estimated by dividing the usable battery capacity (Wh) by the total load power (W), assuming no solar charging.
Recharge time (0~100% power): Approx. 2–3 days under standard sunlight conditions (4–5 peak sun hours per day, normal temperature). Actual charging time may vary depending on sunlight intensity, system efficiency and power consumption.

All-in-one Package

Size: 730*710*225MM
Weight (Include bracket and accessories): 16.45KG
