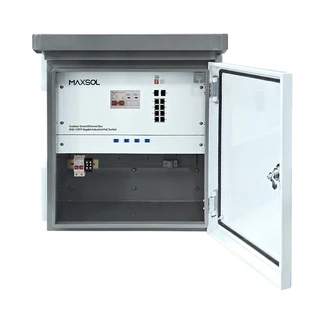

Model: SBOX1802SFG-I

Outdoor Smart Ethernet Box

IP65 unmanaged outdoor industrial PoE switch box with 8 Gigabit PoE ports, 2 Gigabit SFP slots, smart DIP functions, and a 300W power supply.

Key features

8*10/100/1000M PoE ports+2*100/1000M SFP port Industrial PoE Switch, port 1-8 support IEEE 802.3af/at;
PoE port1~port8 support AF/AT intelligent recognition. Standard power is 15.4W/port, Maximum power is 30W/port;
Support AI Watchdog, Port isolation, VLAN, Port Priority +QOS
Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z standards;
Pin Assignment 1,2,3,6
Operation TEMP:-40~75°C
Input voltage: AC100-240V, 50/60Hz
IP protection level: IP65;

Specification

Interface: 8*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber slot port (Data)
Ethernet Port: Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
DIP Switch: AI Watchdog, Port isolation, VLAN, Port Priority +QOS

PoE Standard: IEEE802.3af/at
SFP Port: Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Power Adaptor: 300 W

LED Indicators: PWR, OPT, NMC, ALM
Power Interface: AC Input
Optical Cable: Multimode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Network Topology: Support Star topology, Bus topology, Tree Topology, Hybrid topology
Input voltage: AC100-240V, 50/60Hz
Total Power consumption (POE): < 246 W
Voltage Alarm: Support

Operating temperature: -40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃
Storage temperature: -40℃~+85℃
Relative humidity: 5%~95% non-condensing
Thermal methods: Auto Fans Cooling
MTBF: 100,000 hours

Interface: 8*10/100/1000Base-T PoE ports (Data/Power) 2*100/1000Base-X uplink SFP fiber slot port (Data)
Ethernet Port: Port 1-8 support 10/100/1000Base-TX, auto-sensing, Full/half duplex MDI/MDI-X self-adaption
DIP Switch: AI Watchdog, Port isolation, VLAN, Port Priority +QOS

PoE Standard: IEEE802.3af/at
SFP Port: Gigabit SFP optical fiber port, default matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Power Adaptor: 300 W

LED Indicators: PWR, OPT, NMC, ALM
Power Interface: AC Input
Optical Cable: Multimode: 850nm 0 ~ 550M, single mode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM.
Network Topology: Support Star topology, Bus topology, Tree Topology, Hybrid topology
Input voltage: AC100-240V, 50/60Hz
Total Power consumption (POE): < 246 W
Voltage Alarm: Support

Operating temperature: -40℃~+75℃ The device is tested for 4 hours at temperatures in 85℃
Storage temperature: -40℃~+85℃
Relative humidity: 5%~95% non-condensing
Thermal methods: Auto Fans Cooling
MTBF: 100,000 hours
