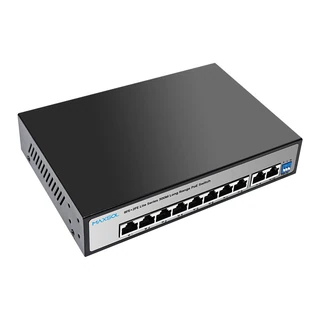

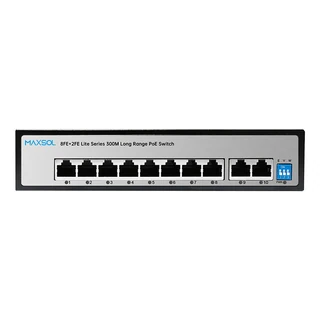

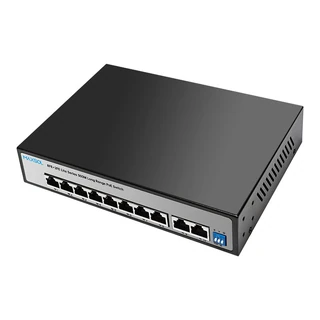

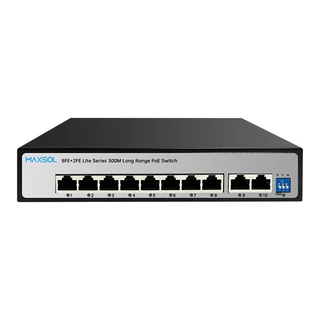

Model: PS1802E-L

8-Port Fast Ethernet PoE+ Switch with Watchdog

PS1802E-L switch with 8 Fast Ethernet PoE+ ports, 2 Fast Ethernet uplinks, VLAN isolation, 300m Extend mode and PoE watchdog for CCTV networks.

Key features

8FE+2FE Uplink Lite Series 300M Long Range PoE Switch
IEEE 802.3af/at compliant, up to 30 W per PoE port
Internal power adapter supply 96W
Support DIP switch to VLAN / Extend 300M / Watchdog
Support AI network self-healing (watchdog) function
Support desktop and wall-mounted installation
6KV surge protection function

Send Inquiry By Emailsales@maxsol-tech.com

DatasheetDownload View

Specification

Interfaces

Model: PS1802E-L
Fixed Port: 8*10/100Base-T/TX PoE ports (Data/Power) 2*10/100Base-T/TX Uplink RJ45 ports (Data)

PoE

PoE Port

Port 1-8 support PoE

DIP Switch 3-Mode Function

E – Extend Mode: Extends PoE transmission distance up to 300 m while maintaining stable data and power transmission.

V – VLAN Mode: Isolates each PoE port from one another while allowing communication with the uplink port, improving network security and reducing broadcast traffic.

W – Watchdog Mode: Automatically detects unresponsive IP cameras and restarts their PoE power supply to restore normal operation, minimizing downtime and maintenance costs.

Network Protocol

IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u 100Base-TX; IEEE802.3x.

Ethernet Port Feature

10/100Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive

Forwarding Mode

Store and Forward

Switch Property

Switching Capacity: 2.0Gbps
Forwarding Rate: 1.49Mpps
MAC: 2K
Buffer Memory: 768K
Twisted Pair Transmission: 10BASE-T:Cat5 UTP(≤300 meter) 100BASE-TX:Cat5 or later UTP(≤100 meter)
Power Supply Pin: Default 1/2(+), 3/6(-);
MAX / AVERAGE Power Per Port: 30W/15.4W
Total Power: 96W
Power Consumption: Standby:<5W; Full load:<96W

Physical Characteristics

LED Indicator: Power indicator: PWR (Green) Network indicator: 1-8(Link/Act)/ (Green), 9-10(Link/Act)/ (Green)
Power Supply: Built-in power adaptor AC100~240V 50-60Hz,96W
Operation TEMP / Humidity: -20~+55°C:5%~90% RH non condensing
Storage TEMP / Humidity: -40~+75°C;5%~95% RH non condensing
Dimension: 195*135*40mm
Net /Gross Weight: <1.0kg / <1.2kg
Installation Method: desktop type, wall mounted
Protection: IEC61000-4-2(ESD): ±8kV contact discharge, ±15kV air discharge; IEC61000-4-5(Lightning protection/Surge): Power:CM±4kV/DM±2kV; Port: ±4kV.
Protection level: IP30

Package Contents

Switch: 1 pcs
Power cord: 1 pcs
Quick installation guide: 1 pcs
